Axle Beam (Front)

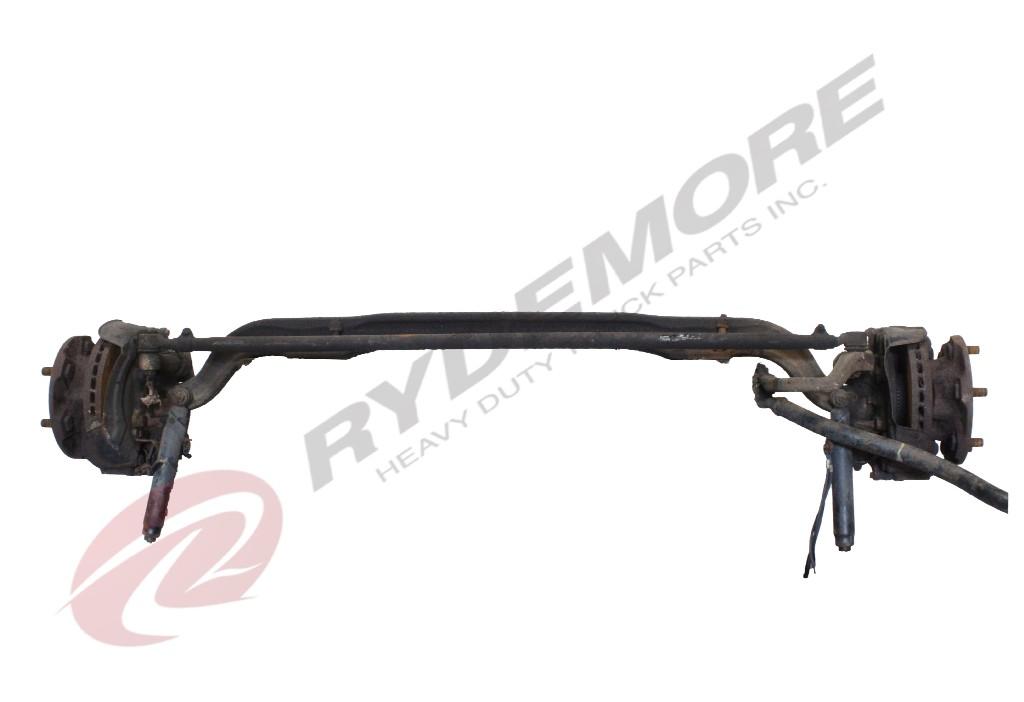

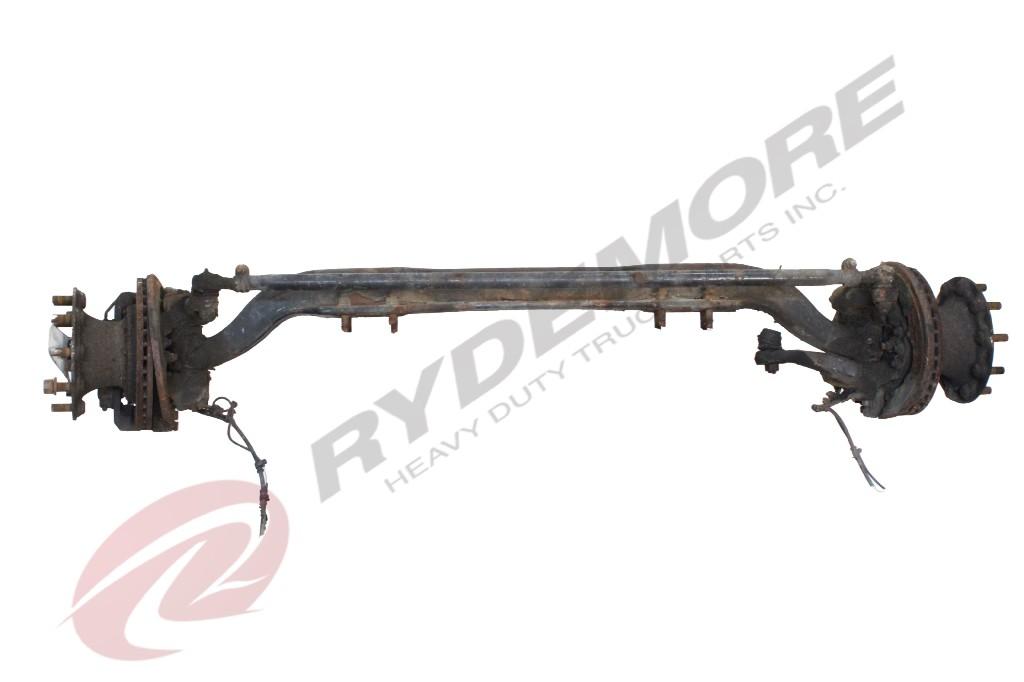

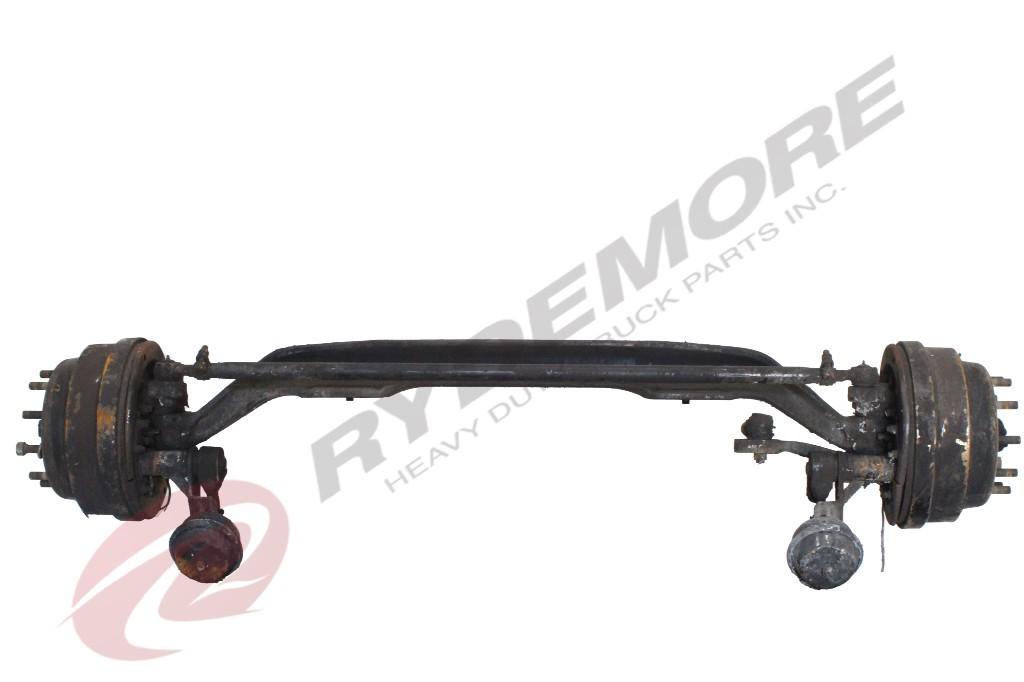

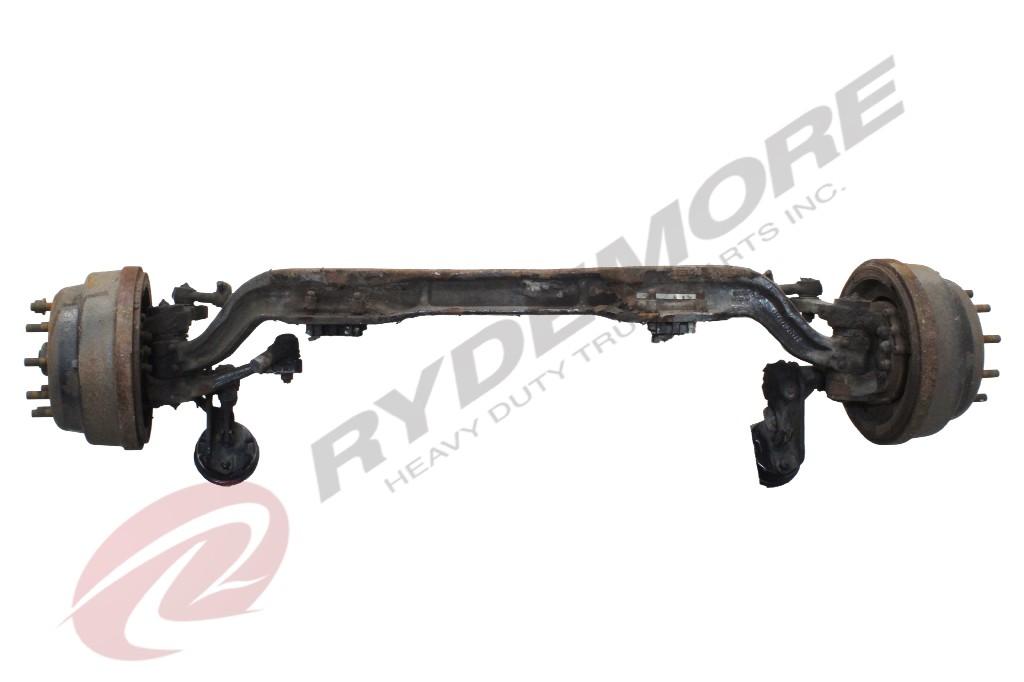

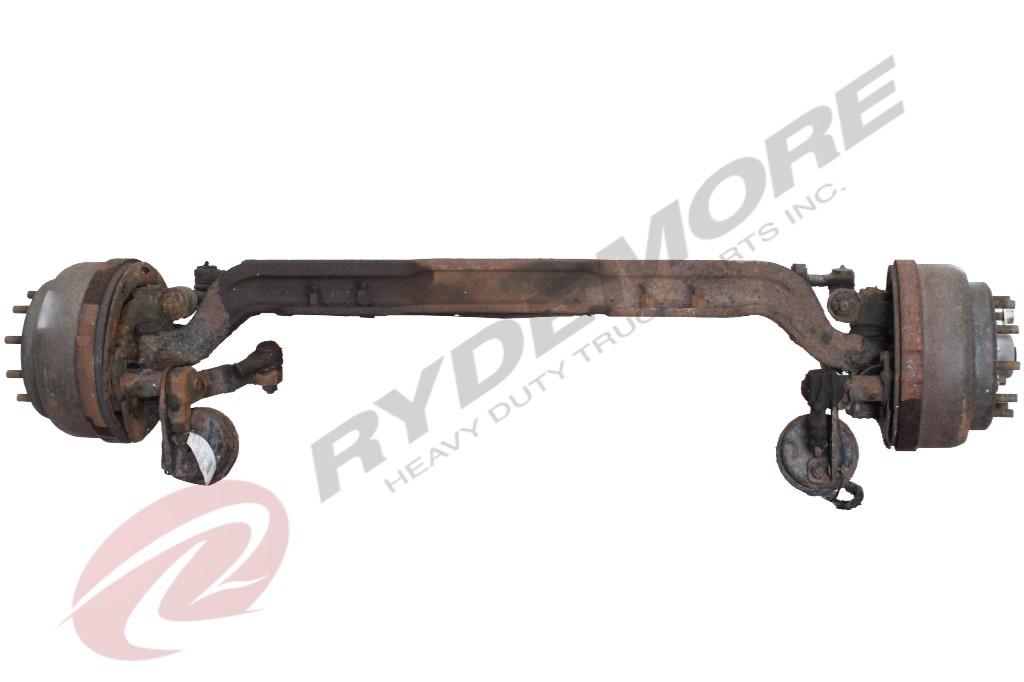

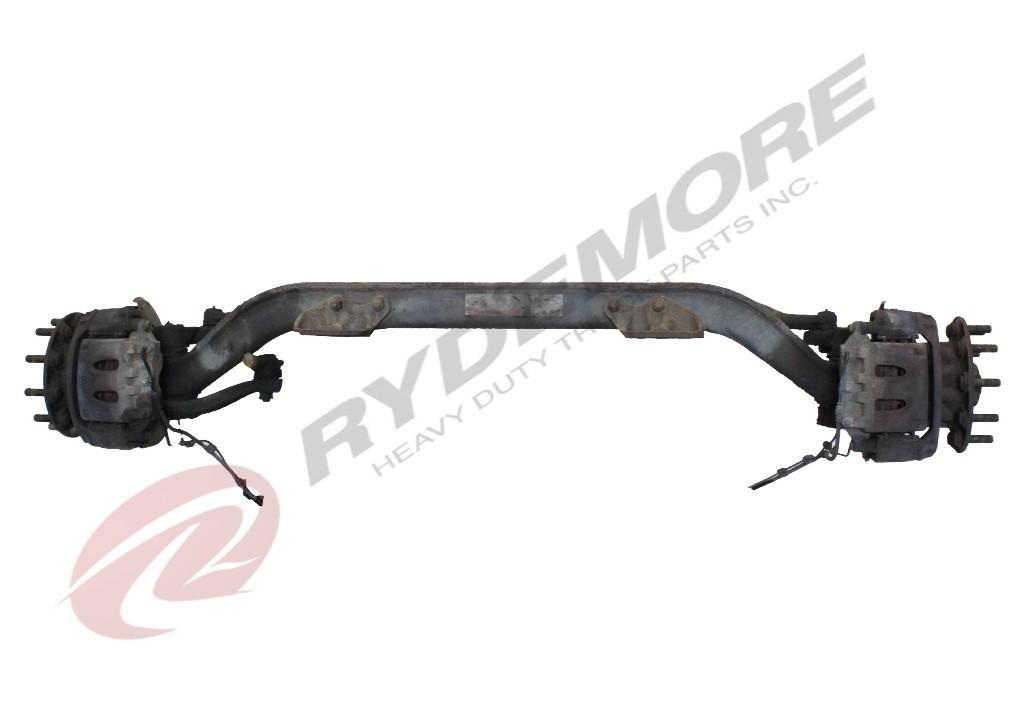

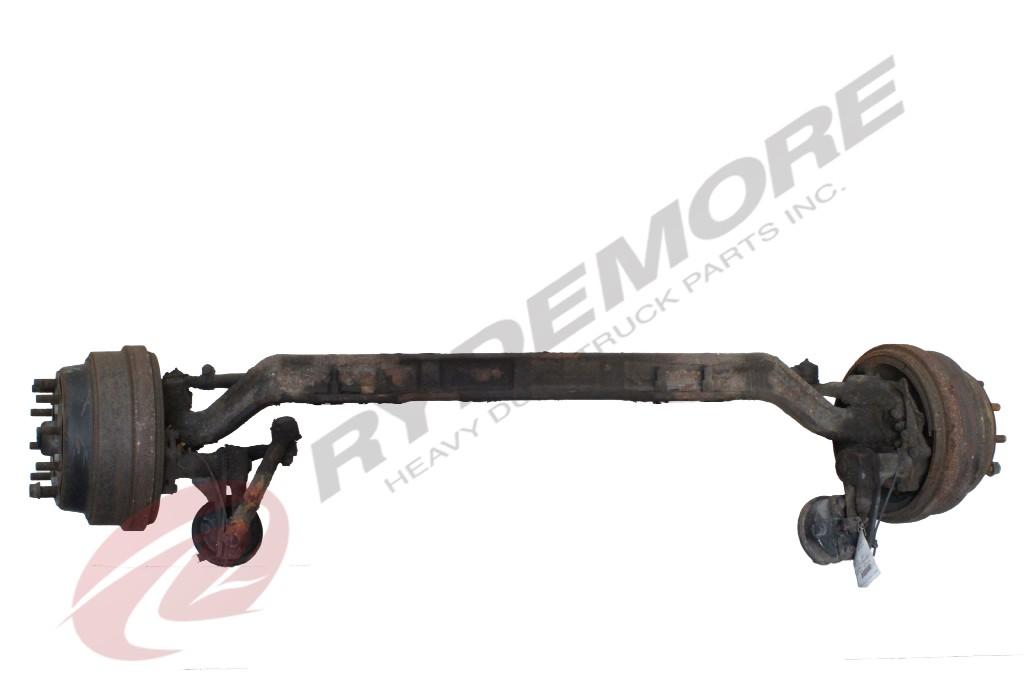

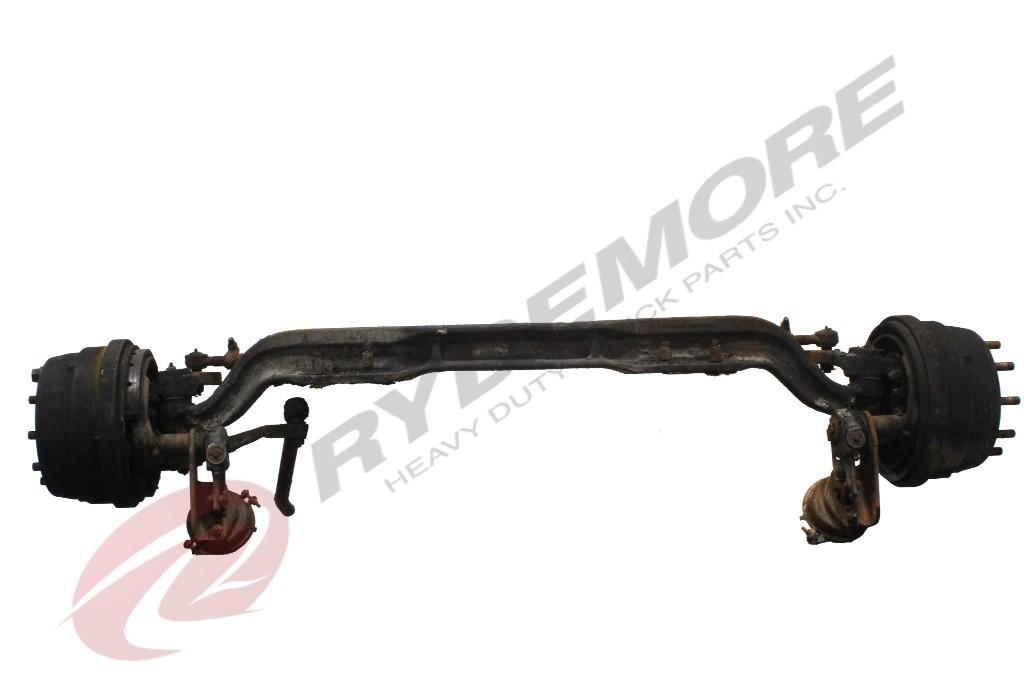

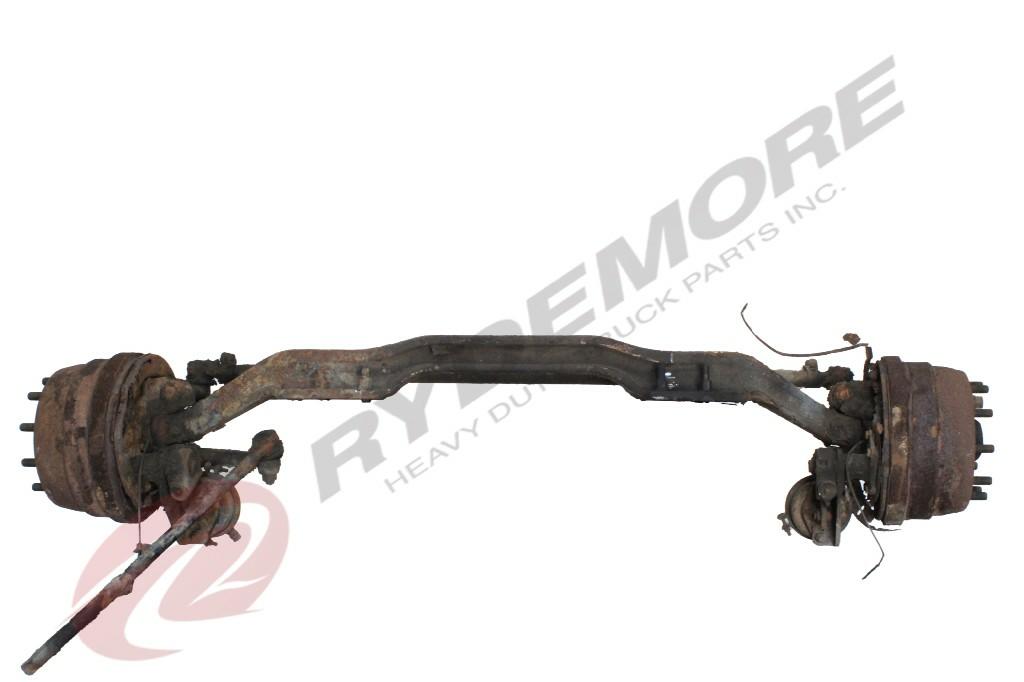

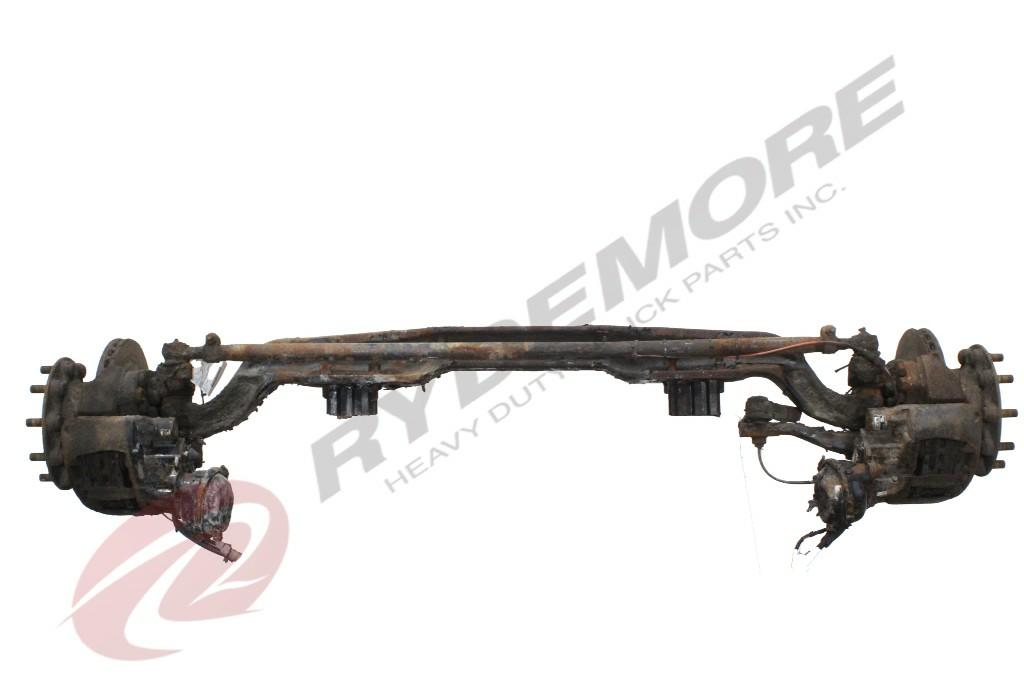

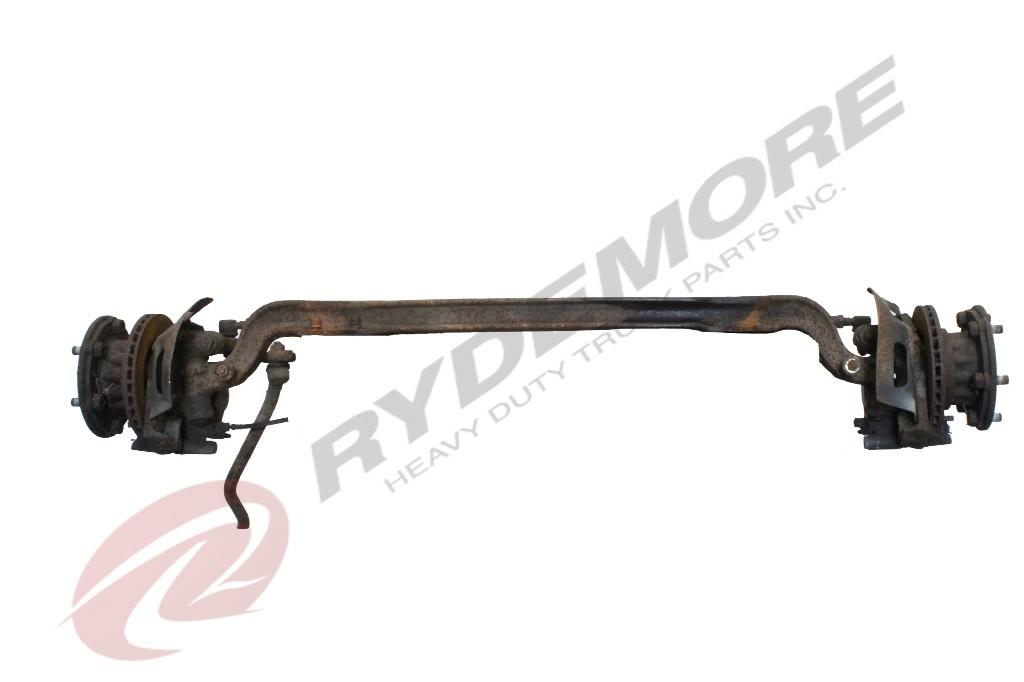

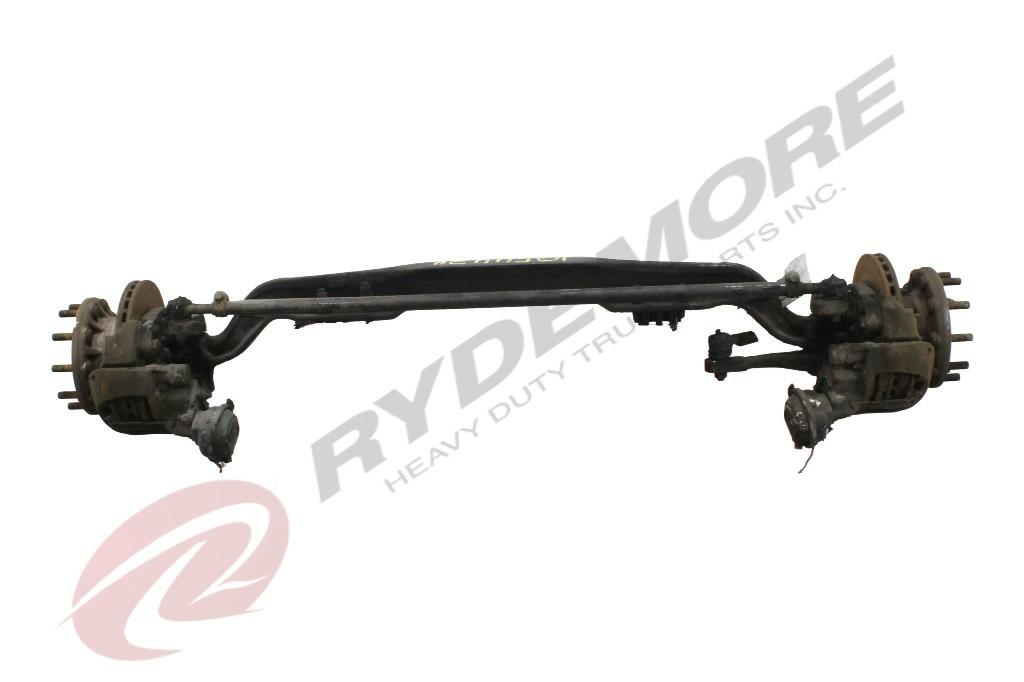

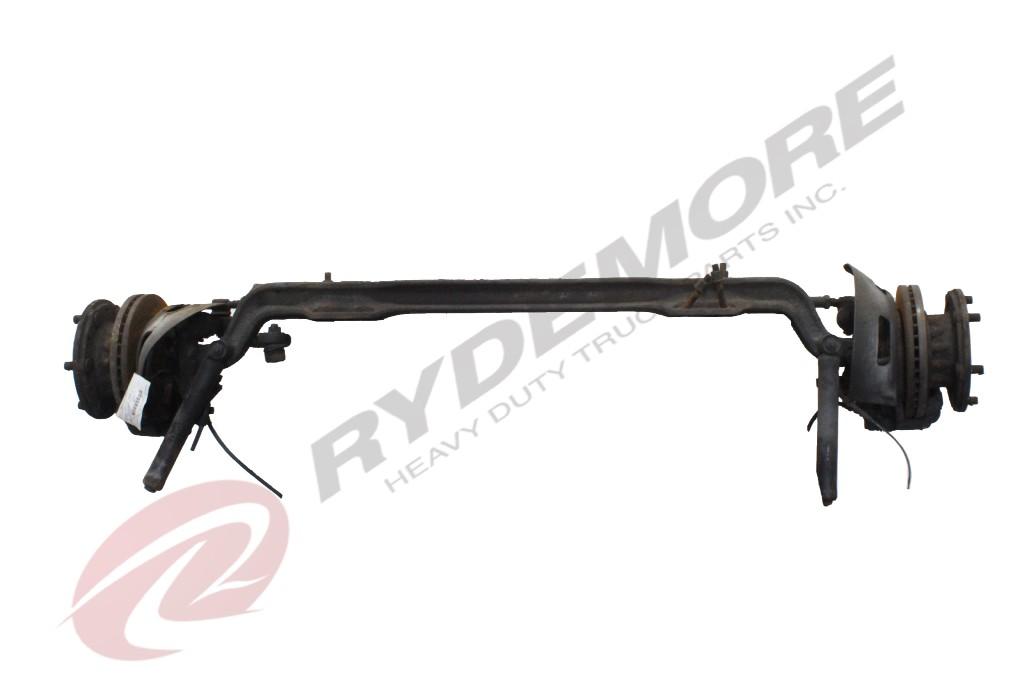

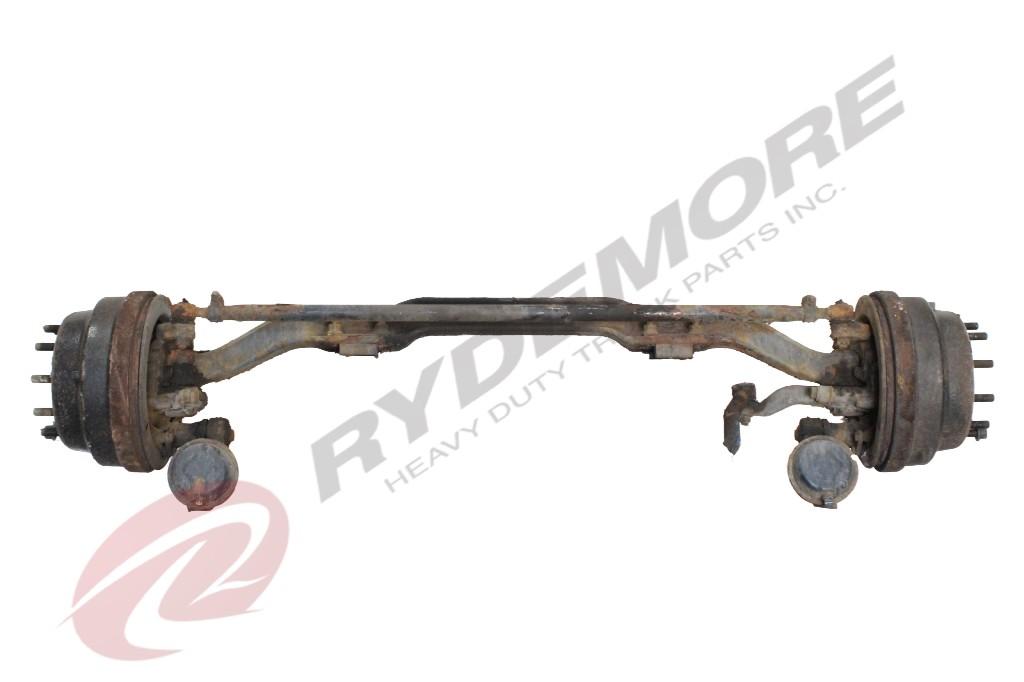

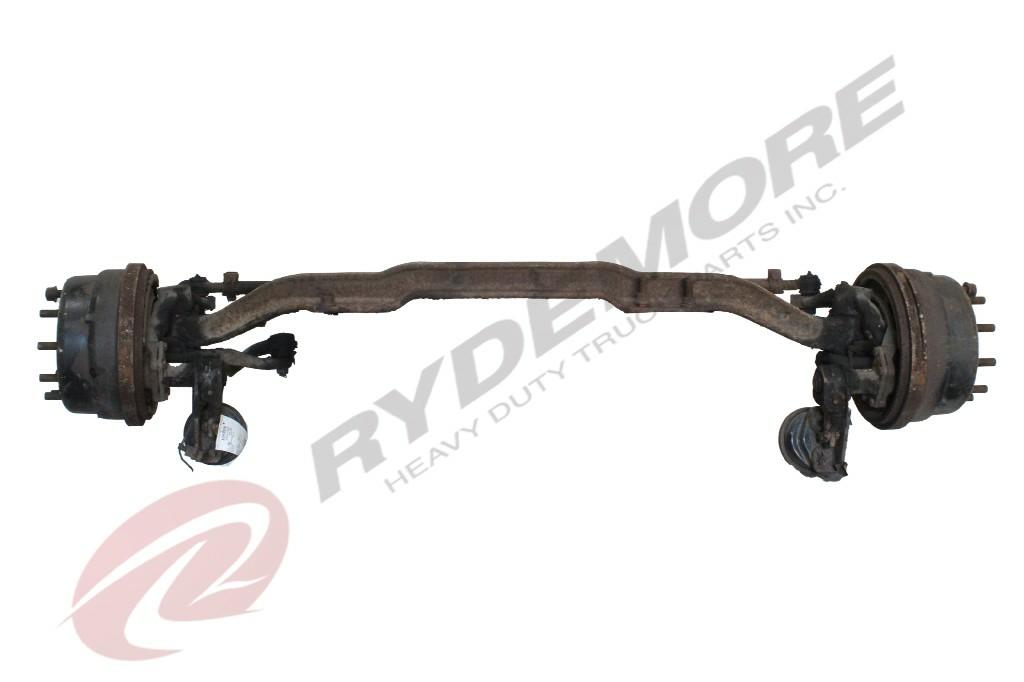

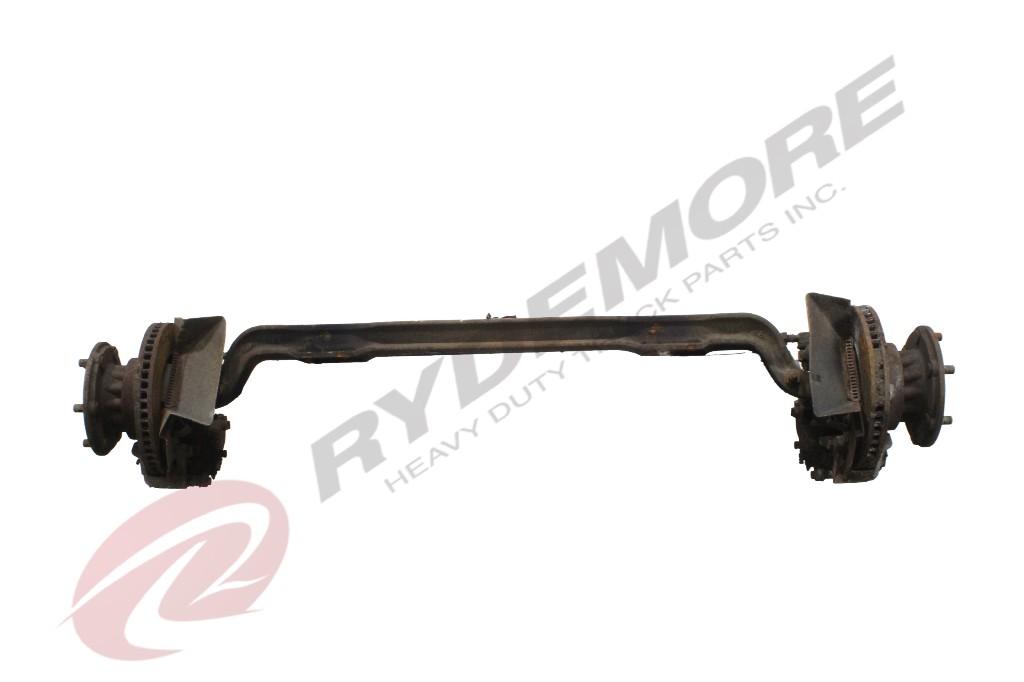

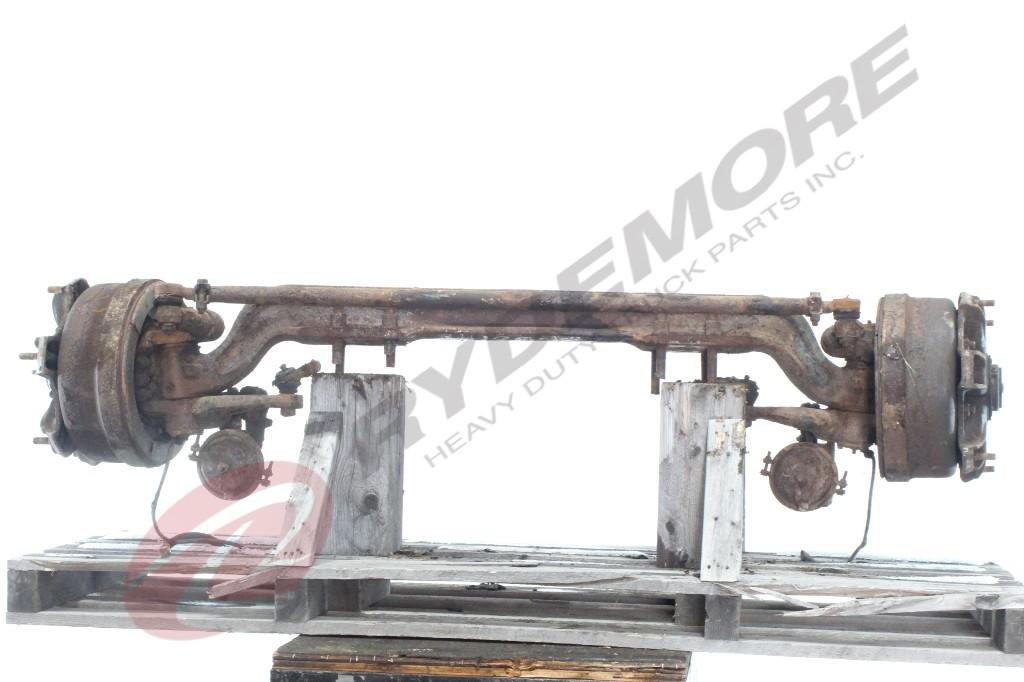

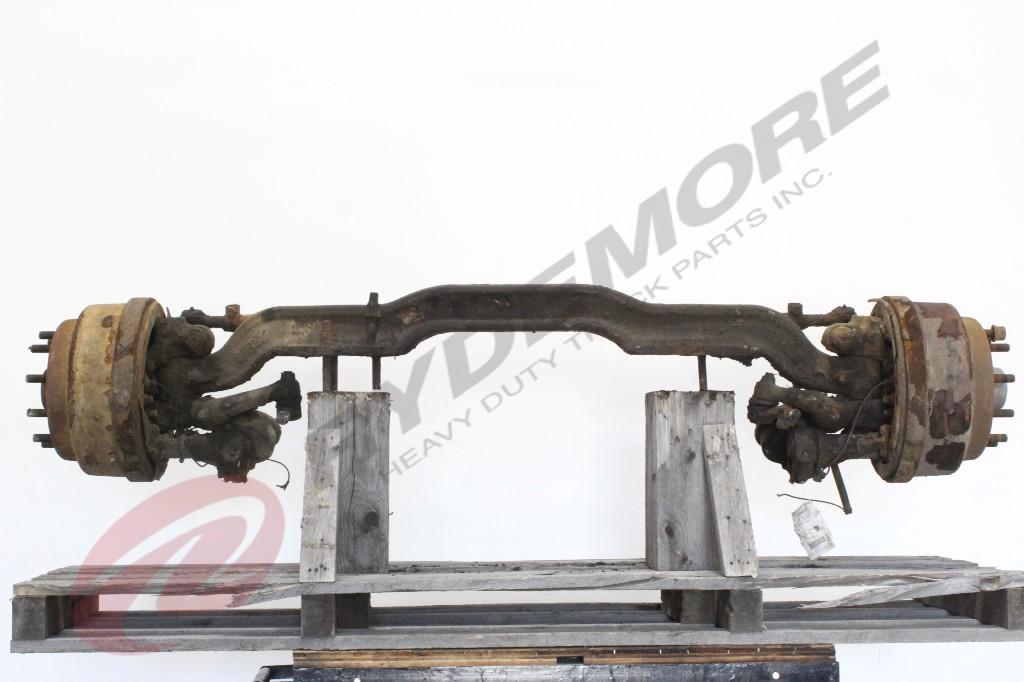

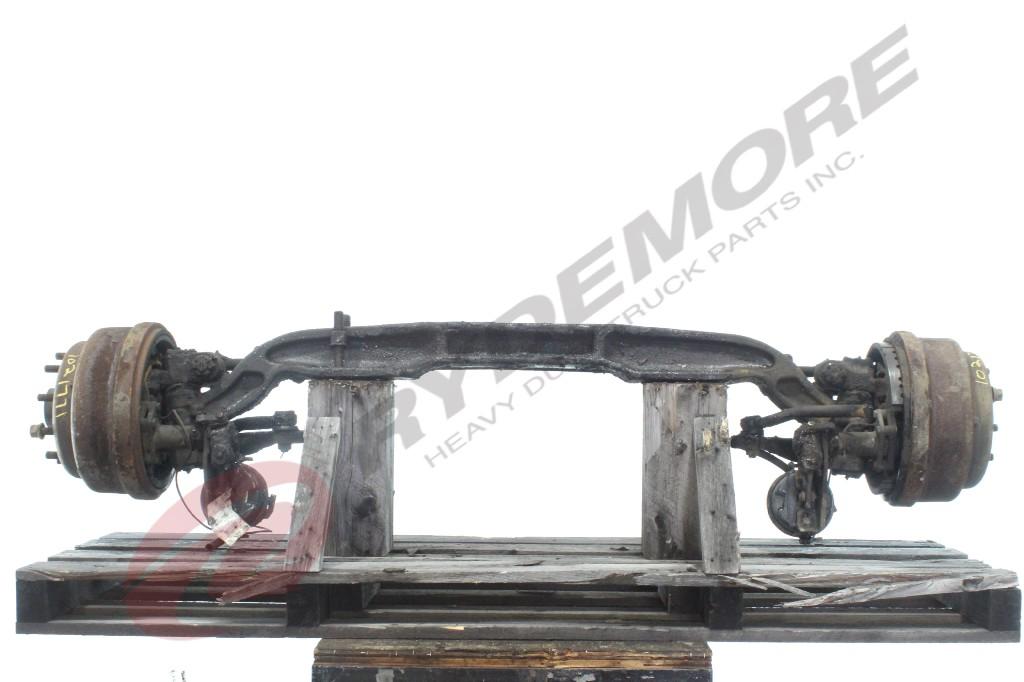

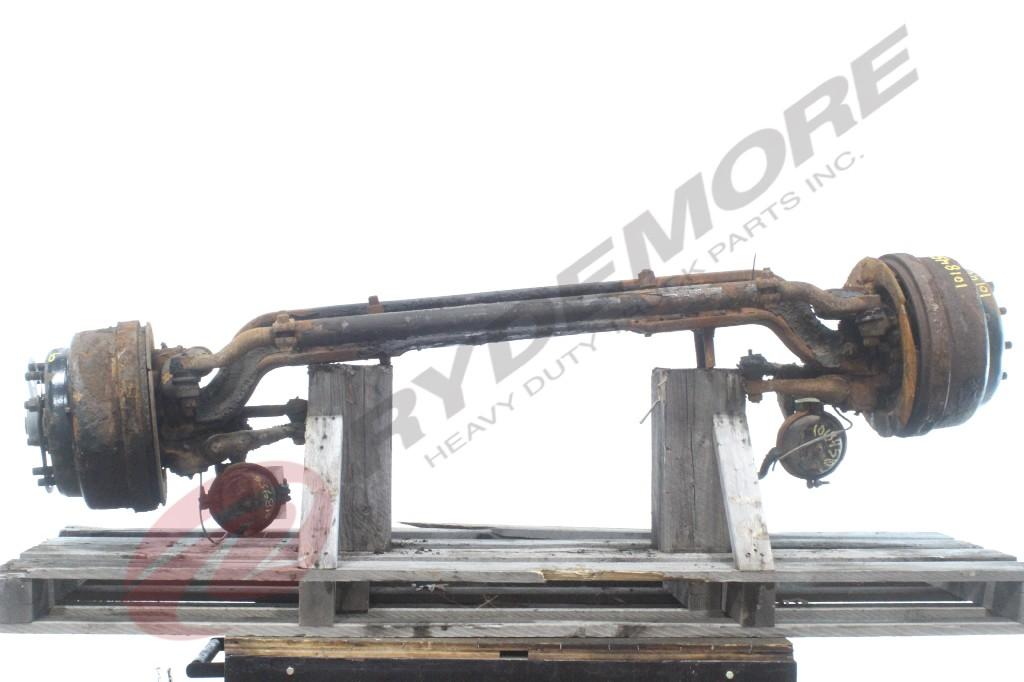

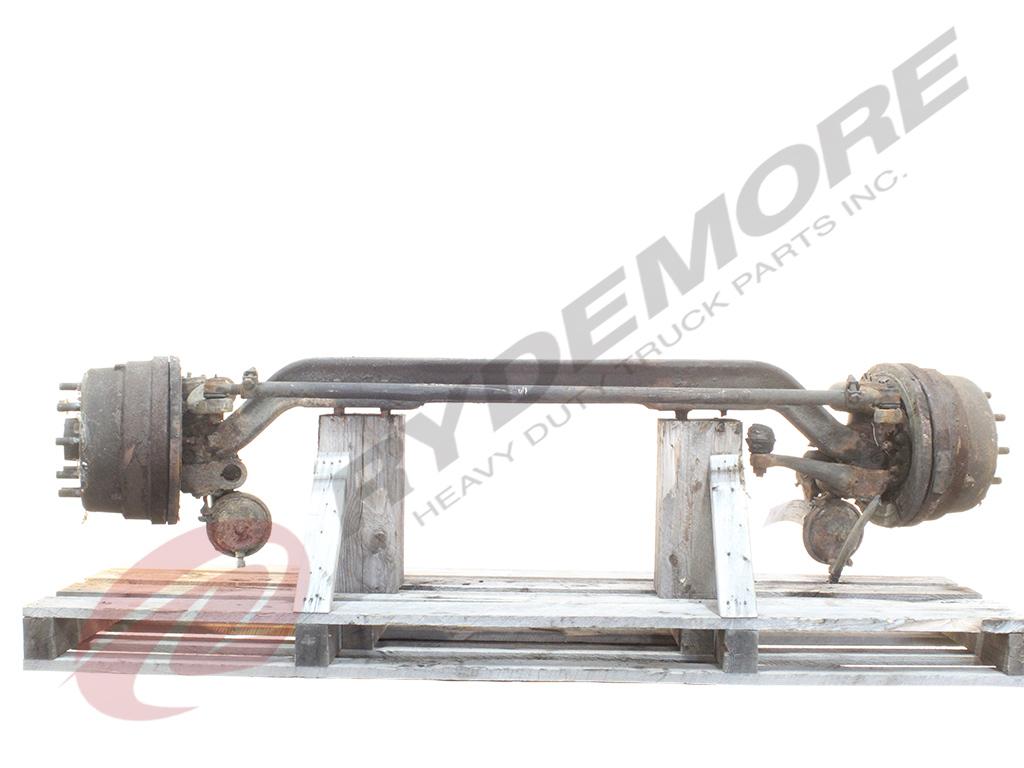

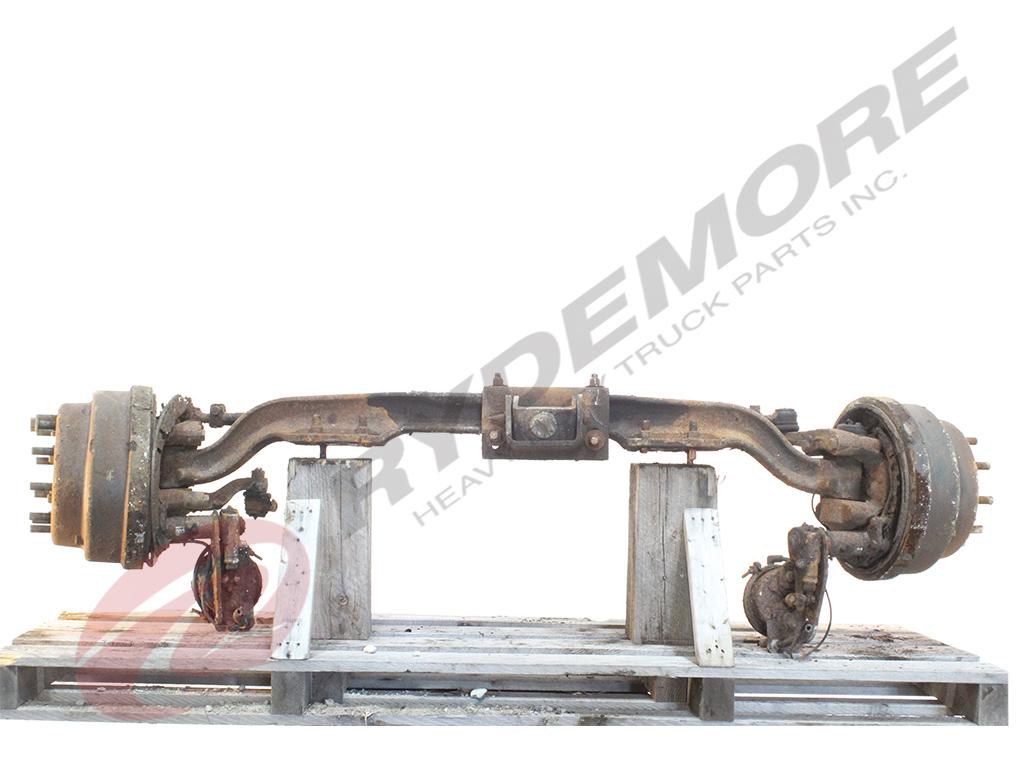

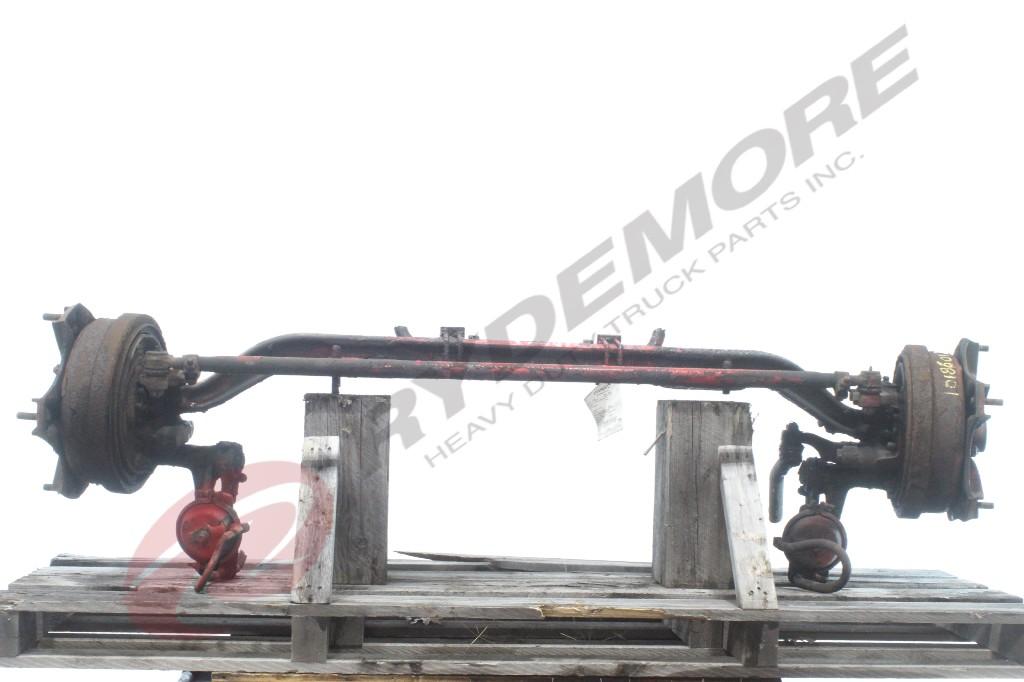

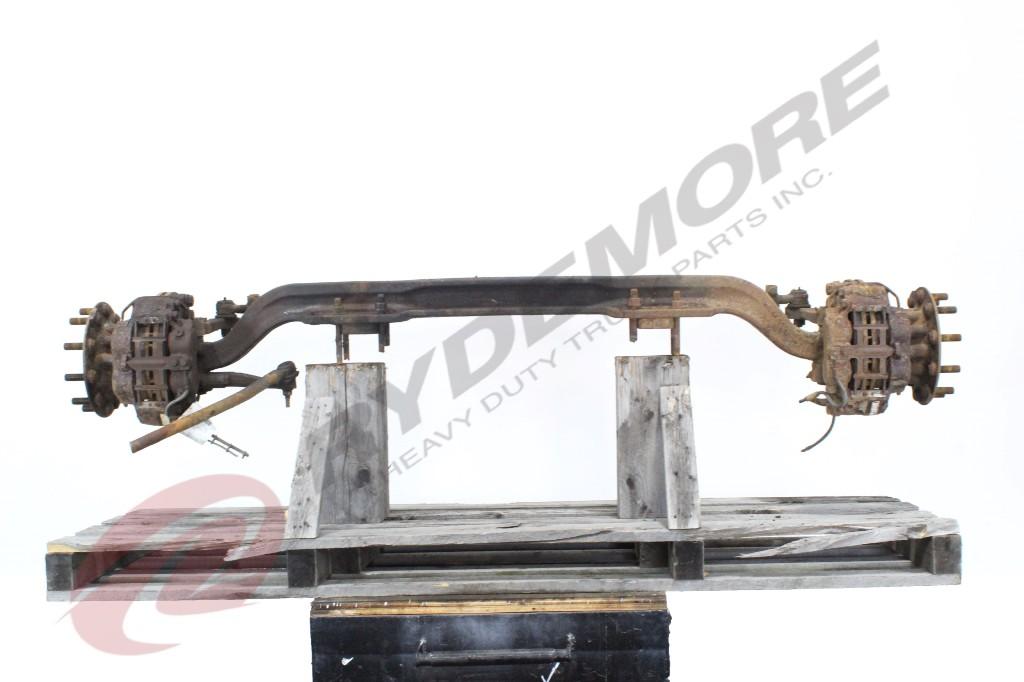

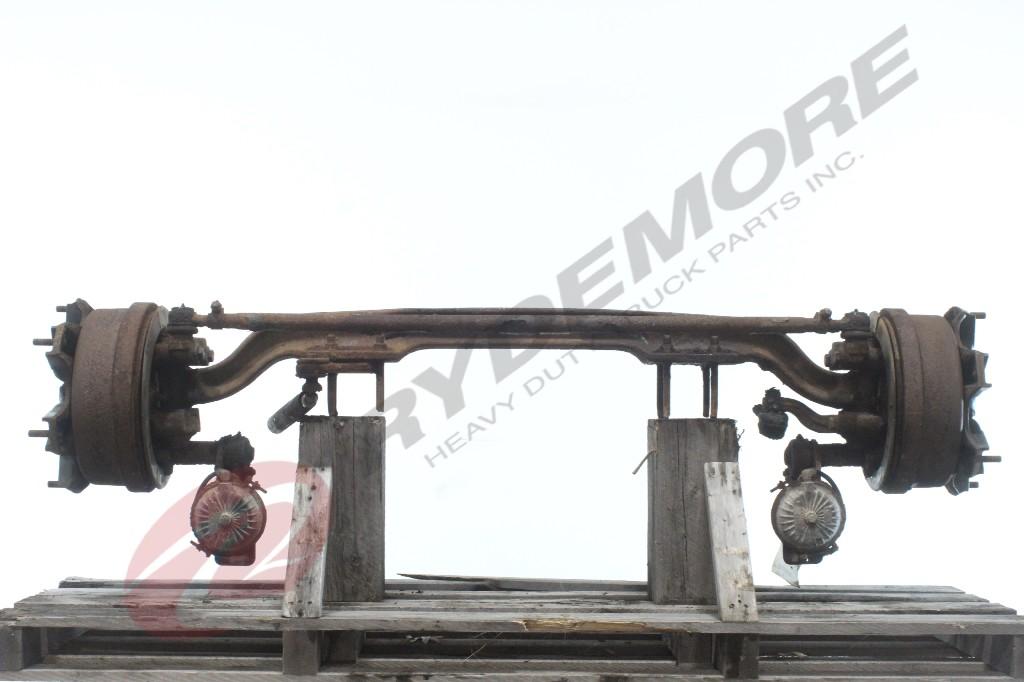

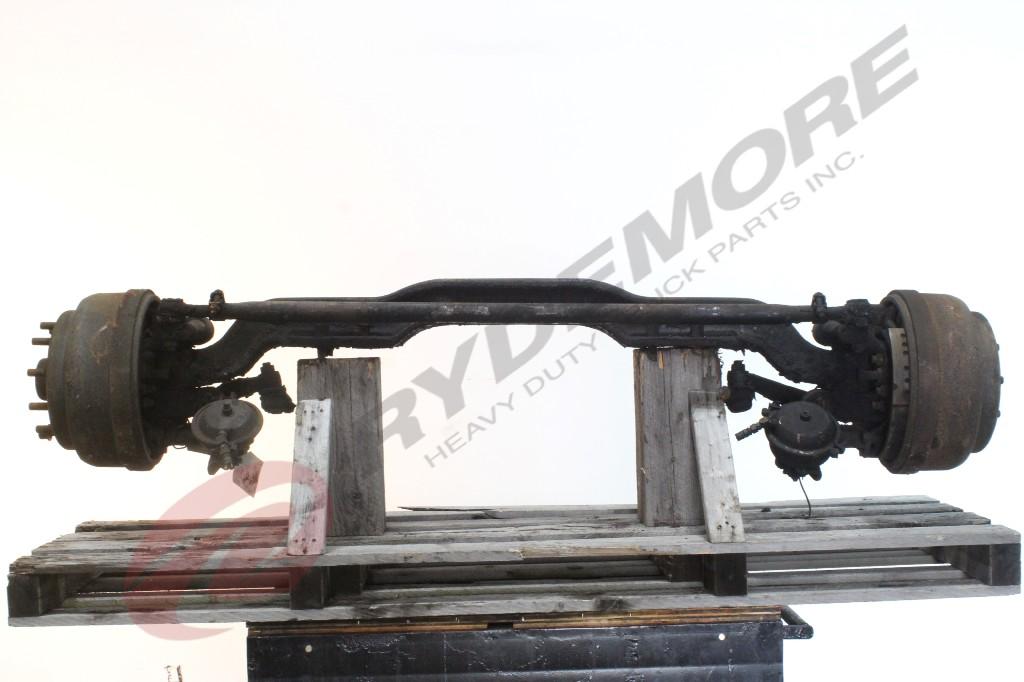

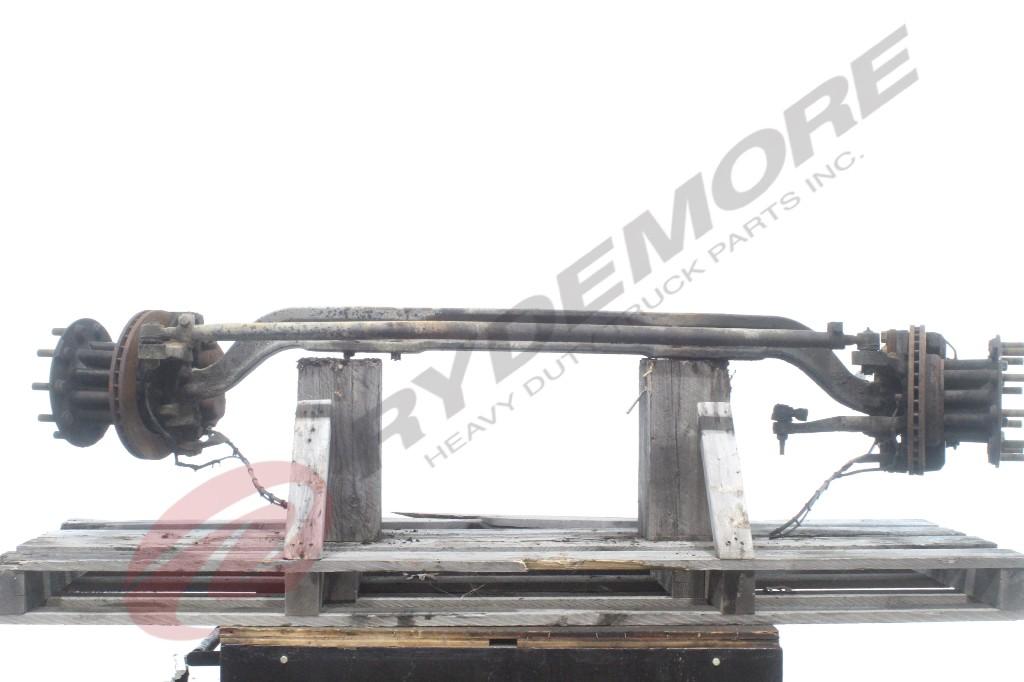

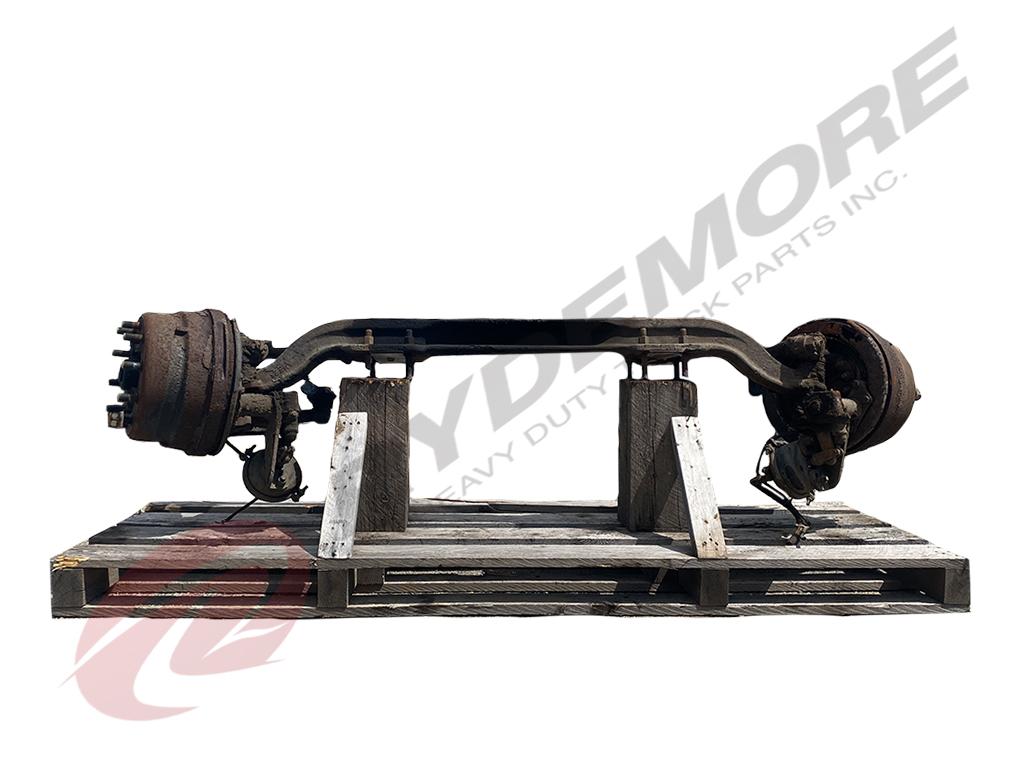

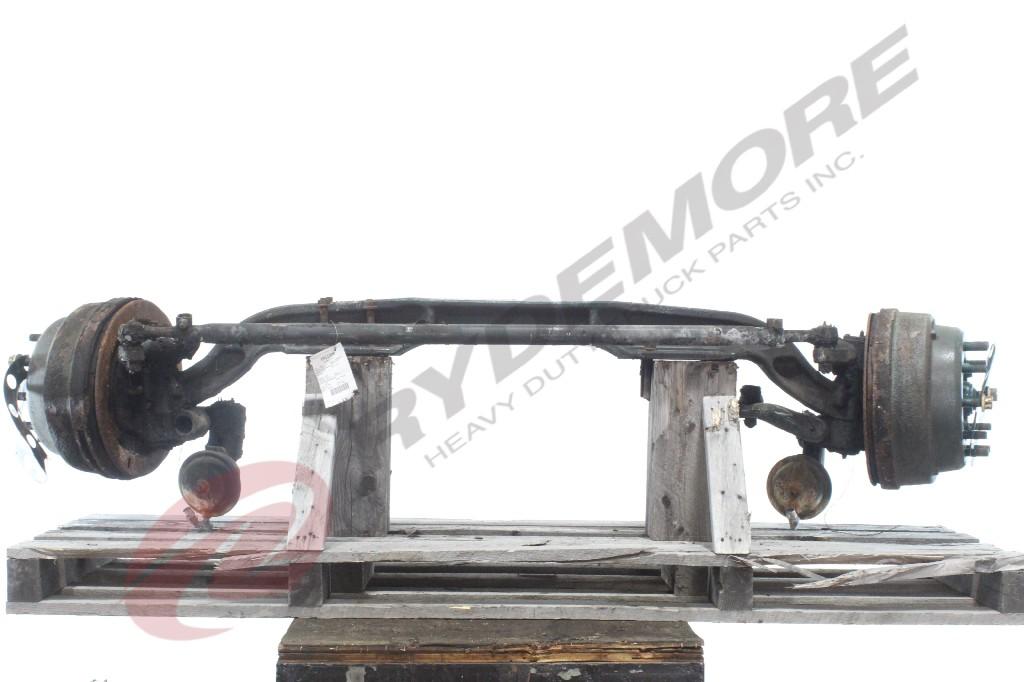

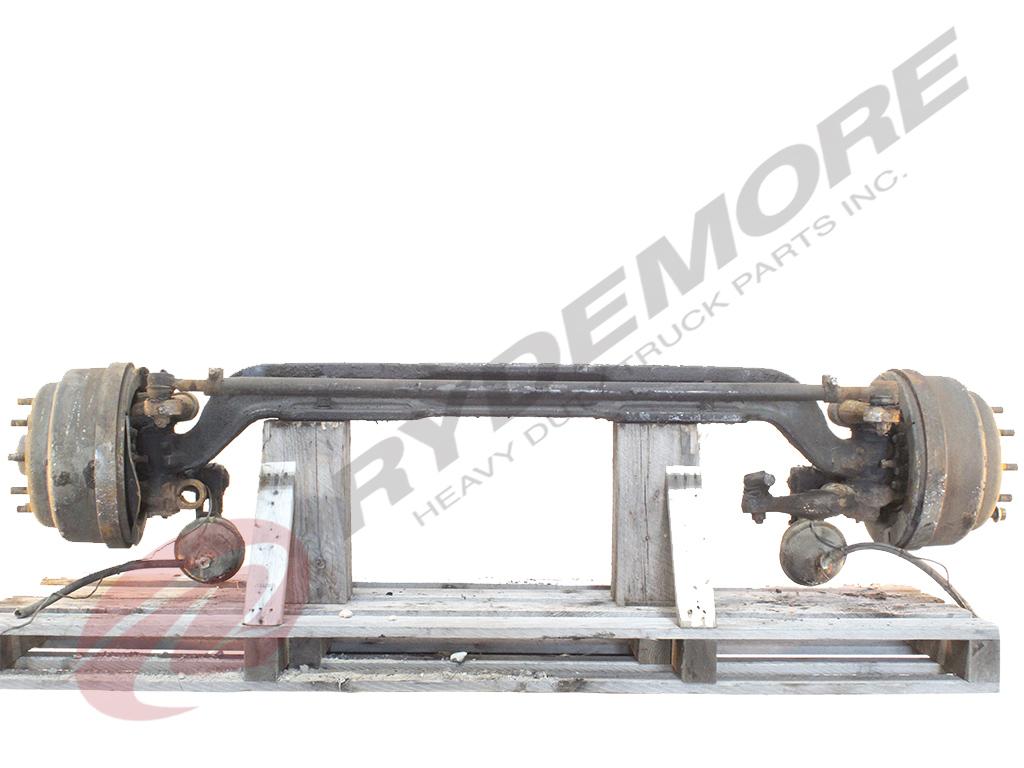

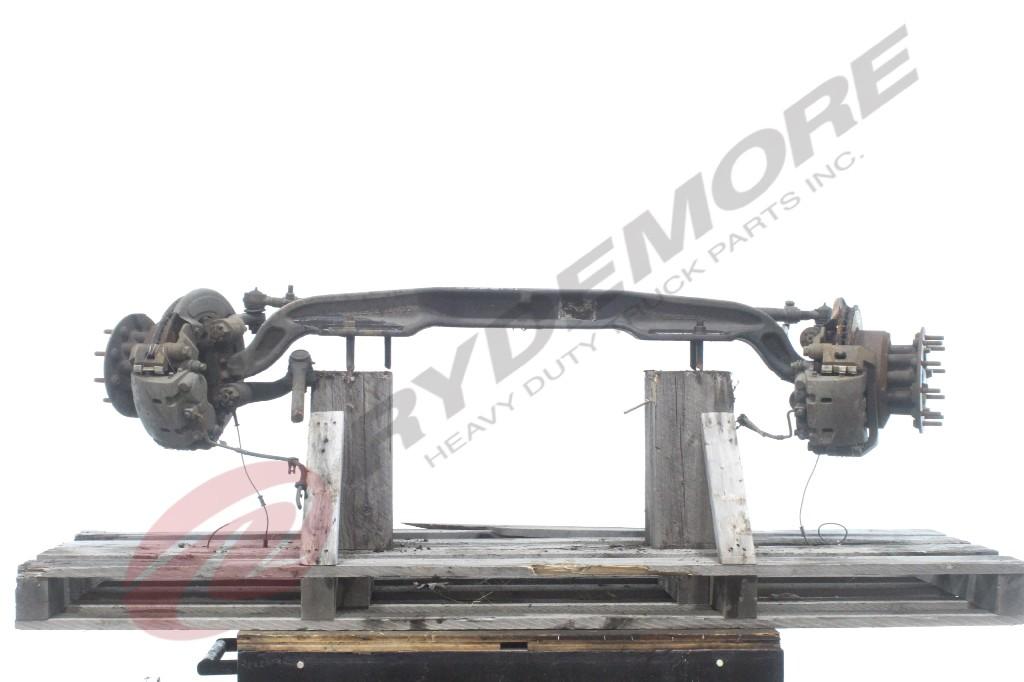

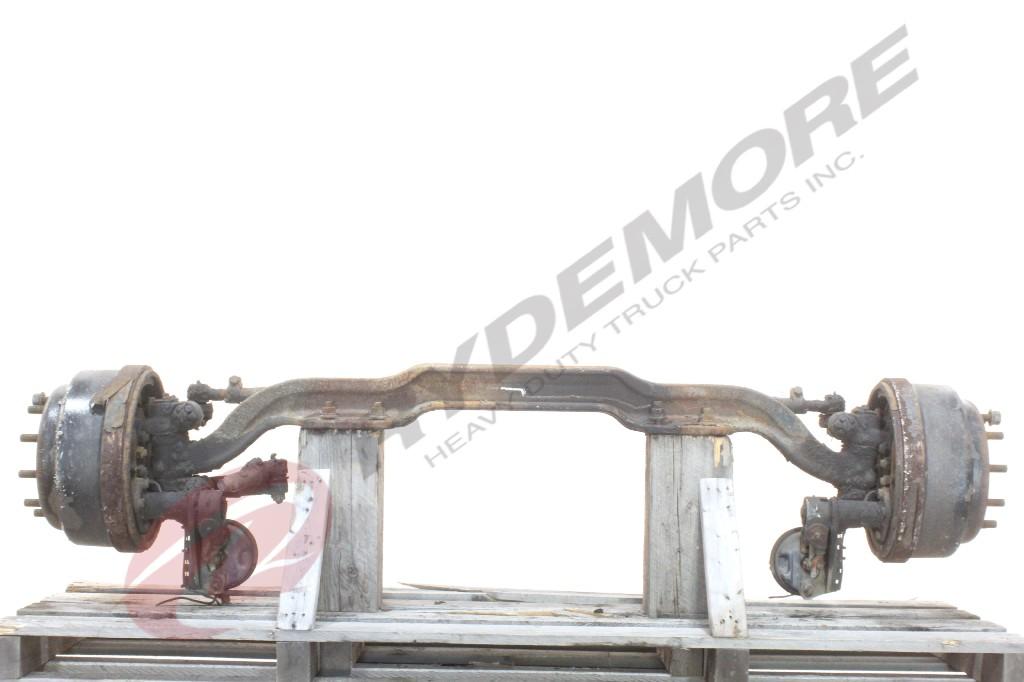

Used front axle beams from International, Mack, Ford and other medium- and heavy-duty trucks, listed with capacity, hub type and spring measurements.
The front axle beam is the backbone of a truck’s steer axle. It carries the front of the truck, and the steering knuckles pivot on kingpins at each end. Beams are built to a rated load and a specific geometry, so the details on the old beam’s tag or casting are what you match a replacement to.
| Meritor model | Rated load (lb) | Beam drop (in) | Kingpin intersection (in) |
|---|---|---|---|
| MFS-12-122A-N | 12,000 | 3.50 | 69.0 |
| MFS-12-143A-N | 12,000 | 3.74 | 71.5 |
| MFS-12E-122A-N | 12,500 | 3.50 | 69.0 |
| MFS-14F-144A-N | 14,600 | 5.00 | 71.5 |
| MFS-20-133A-N | 20,000 | 3.74 | 71.0 |
What is a front axle beam?

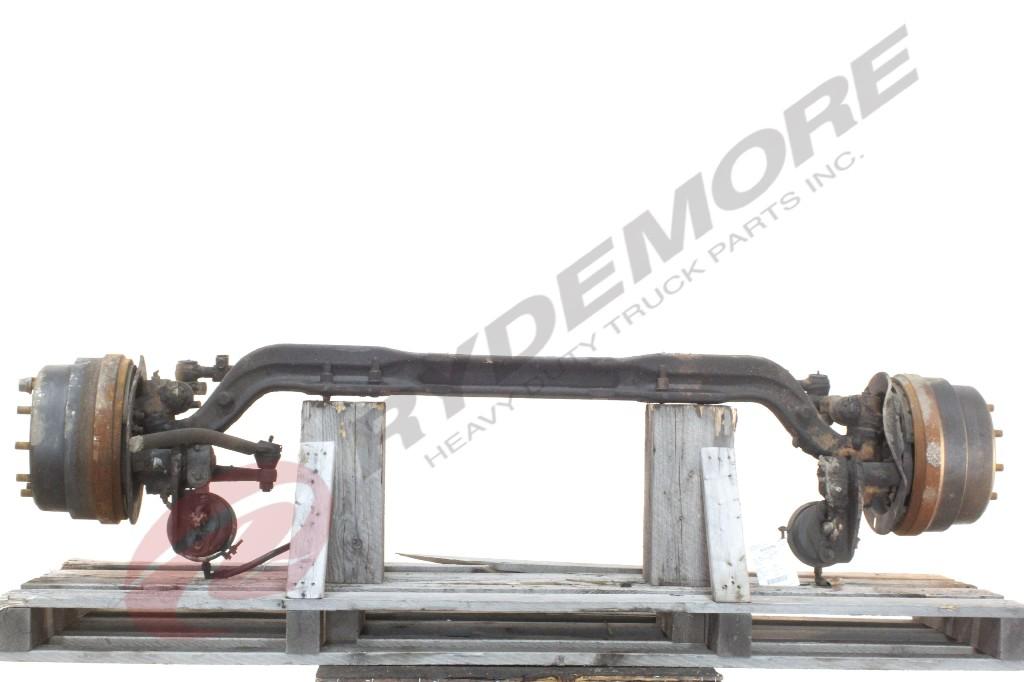

It’s the forged steel I-beam at the center of a front non-drive steer axle. The beam carries the truck’s front load, and the knuckles, hubs and brakes mount at its ends through the kingpins. On a front axle that doesn’t drive the wheels, the beam is the main structural part.
How much does a front axle replacement cost?
It depends on the beam’s rated load, its make and how complete the assembly is. Each listing above shows a price or asks you to call. That’s the parts cost only, so budget separately for kingpins, alignment and installation labor. For a quote on a specific beam, call 978-342-1100.
How do I know which front axle beam fits my truck?
Match the rated load first, then the geometry. Meritor builds the same rated load with different beam drops and kingpin intersections. In the table above, the two 12,000-lb axles differ in both. Compare the capacity, hub type, spring width and center-to-center figures on each listing to your current beam before ordering.
What do the numbers in a Meritor axle model mean?
The number after “MFS” tracks the rated load in thousands of pounds. An MFS-12 is rated for 12,000 lb and an MFS-20 for 20,000 lb. Letter suffixes can change the rating: the MFS-12E is rated 12,500 lb and the MFS-14F 14,600 lb, so check the full model on the tag.
Is there a guarantee on a used front axle beam?
Yes. Rydemore covers used front axle beams with a 30-day guarantee for swap or refund, at Rydemore’s discretion, if a beam is defective or won’t take kingpins. A claim requires a report from an ASE Certified facility, and improper installation voids the guarantee. See the warranty page for full terms.
Sources: Meritor model ratings, beam drops and kingpin intersections: Cummins (Meritor) MFS Series front non-drive axle specifications. Guarantee terms: Rydemore warranty page.
Last updated: October 29, 2026
